COMPUTER APPLICATION
Project 1
MODELLING OF AN ARCHITECTURAL DESIGN
1. Trace the plan in Autocad.
2. Create the building base. Draw line and extrude it.
3. Extrude the walkway. To make gaps betweeneach piece of wood, good drawn plan will extrude them all by once but my plan ain't pretty so I copy paste one by one.

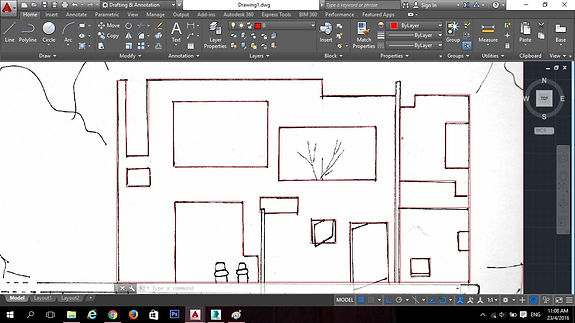

4. Trace the elevations in Autocad. Make suree all elevations' dimension is fit in plan. SCALE them correctly. Besides, create different layer b4 import it to 3dsmax.
5. Import elevations in 3dsmax and extrude elevation wall with attached opening.
6. Same to all walls. Extrude them all. Create a higher base for the inner building(prevent wave splashing).
7. Draw the beam and columns for walkway and the building, interior n exterior.
8, Change the color to diferrentaite wall floor and columns.
9. Do the detailed part like add window frames and opening, staircase, railing etc...
Rotate pivot windows and doors on the exterior face(designed for view framing for the owner, a movie maker.)
Add frames for sliding door and other openings and change the opacity of the windows.
Create raililng of staicase n ladder by cylinder object. Extrude the plan of the staircase by different height.
10. Cover the roof part(after I stop adding detail for interiorss).
11. Test rendering.
12. Build the contour by creating planes(soft selection, paint, push and pull).
13. Import the building from previous file. Place the model on contour. Done.
14. Click Rendering>Environment and choose blue color for the sky.
15. Rendering. (5 n above views)
Others.
Project 2A
Still Rendering with Materials, Lights, Camera Views with Site Context
Applying Materials and Lighting
1. To place in material, go to the material editor and material map browser and select arch n design.
To apply material for the water, select water, reflective surfacefrom template. Adjust the disfuss, reflection and refraction level.
2. Drag the material towards the model or click the button Assign Material to Selec tion.
3. Click on 'Show shaded material in viewport' to make it visible in viewport.
4. If u want to choose best suit material from net, click on the bitmap tab and choose ur download material.
5. If u want to scale the material as I used wood cladding facade as my material, click UVW map in modifier and adjust the scale from length n width.
6. Test out different way to get the best result. Same steps repeated to the other materials.
7. Create daylight by dragging the sun to viewport. Turn the setting to mr sun and mr sky and manual.
8. Set the target camera to capture the specific view.
9. Adjust the camera height to human eye level which is 1500mm.
10. To shorten the calculation time, generate Final Gather Map. Go to Render setup>Global Illumination>Reuse(FG and GI Disk Caching)>Final Gather Map>Change Off to Read FG Points only from Existing FG Map Files>Select File Saving Location > Click Generate Final Gather Map Now.
11. Render Output: Human eye level view.
12. Use post production(photoshop) to edit. Done.
Project 2B
1. Place target camera of two different perspective.
2. Download 3d furniture from free website.
3. Import furniture to the building. Arrange it according to my liking.
4. In order to have realistic look, materials are imported through bitmap and put onto desire part.
6. When the materials are ready, group the parts within the furniture.
7. After grouping, place the furniture to the place I plan.
8. Use UVWMAP to adjust the texture of the furniture.
9. Create light to light up the interior space. Create target lights and change the setting according to the shape of lamp. Test render to get desire result.
10. Render output.
11. After ps, DONE.
Project 3
1. Save the previous project 3Ds file into a different source to back up with a second copy the original file. Go the "Animation" tab on top and look for "Walkthrough Assistant".
Walkthrough assistant is where you create a walkthrough camera for your animation, after selecting creating new camera click on the camera wanted and select "pick path"
2. To create path, go to the create icon, second button and select "NURBS Curves" from the tab. Select "point curve" to create path for walkthrough camera.
To edit the path, click on "modifier list" and select point, move the points around for desire path selection.
3. Preview the walking animation by clicking the play animation button.
4. If u wanna turn or rotate any object in the animation, click Autokey>then move the object>click key. Then repeat the steps if u wan to move another object.
Press Autokey.
Move or rotate the object.
Click the key.
5. Before rendering, at the common bar click the active time segment>Scroll down press save file>save file as avi.
6. Render.
Video:
